Manufacturer Part #

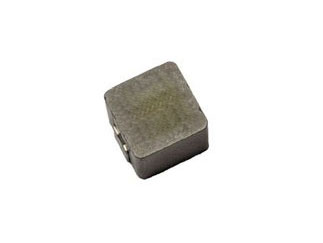

HCM1A0805V2-220-R
SMT Automotive Power Inductor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Eaton | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Eaton HCM1A0805V2-220-R - Product Specification
Shipping Information:
ECCN:
PCN Information:
CLASSIFICATION OF CHANGE:End-of-Life (EOL) of HCM1AV2-R series, next generation replacement will be HCM1AV3-R series DESCRIPTION OF CHANGE:HCM1AV2-R series will be replaced by HCM1AV3-R series, a new generation manufacturing platform with fully integrated automation. HCM1AV3-R is fully backward compatible with HCM1AV2-R specification, including electrical performance and PCB layout.REASON FOR CHANGE:HCM1AV2-R series will be discontinued and replaced by the next-generation HCM1AV3-R. This change is in response to recent market demands for greater manufacturing resiliency and to support advanced product development.TIME SCHEDULE:EOL Date: 09/30/2025 Last Time Buy Period: 06/01/2025 to 08/30/2025 Last Time Shipment: 09/30/2025
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=HCM1A0805V2-220-R&field4=Eaton&field18=https://p1emea.futureelectronics.com/p/passives--inductors--power-inductors/hcm1a0805v2-220-r-eaton-2164826
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=HCM1A0805V2-220-R&field4=Eaton&field18=https://p1emea.futureelectronics.com/p/passives--inductors--power-inductors/hcm1a0805v2-220-r-eaton-2164826
Eaton HCM1A0805V2-220-R - Technical Attributes
| Inductance-Nom: | 22µH |
| Rated Current-Max: | 3.5A |
| Tolerance (%): | ±20% |
| Shielding: | Yes |
| DC Resistance: | 0.07Ω |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -55°C to +155°C |
| No of Terminals: | 2 |
| Dimension: | L 8.4mm x W 8mm x H 5.4mm |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
500 per Reel
Mounting Method:
Surface Mount
