TT Electronics - BI Technologies | P232-SFC35BR5K

Manufacturer Part #

P232-SFC35BR5K

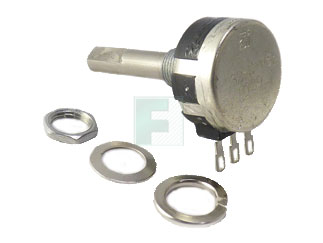

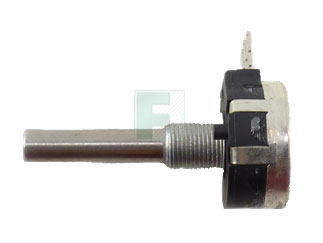

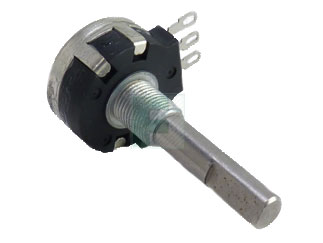

P232 Series 24 mm Side Adjustment 5 kOhm ±10 % Solder Lugs Rotary Potentiometer

ECAD Model:
Mfr. Name: TT Electronics - BI Technologies
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TT Electronics - BI Technologies P232-SFC35BR5K - Technical Attributes
Attributes Table
Type: Potentiometer
No of Turns: Multi
Resistance-Nom: 5kΩ
Tolerance (%): ±10%
Rated Power: 0.5W
Mounting Method: Bushing Mount
Features & Applications

The P232-SFC35BR5K is a Part of P232 Series 5 KΩ 20% tolerance, 24 mm Side Adjustment Metal shaft Rotary Potentiometer.

Specifications:

  • Sealed/ Dust Proof
  • Long Life Element
  • 2 Million Cycle Life
  • Metal Shaft/ Bushing
  • Resistance Range, Ohms 1K-1M (for “B” taper), 5K-1M (for other tapers)
  • Standard Resistance Tolerance ± 10%
  • Input Voltage, Maximum 200 Vdc max
  • Total Mechanical Travel 300°± 5°
  • Static Stop Strength, Minimum 120 oz-in
  • Rotational Torque, Maximum, Single Gang (P232) 1.5 oz-in
  • Operating Temperature Range -10°C to +85°C
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
11 Weeks
Minimum Order:
960
Multiple Of:
320
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$5,078.40
USD
Quantity
Unit Price
1
$5.52
10
$5.45
30
$5.41
75
$5.37
200+
$5.29
