Manufacturer Part #

LEDINTA0012V50FO

100 - 277Vac, 60W, 12V, IP66 LED Driver

ECAD Model:
Mfr. Name: Signify North America
Standard Pkg:
Product Variant Information section
Date Code: 2339
Product Specification Section
Signify North America LEDINTA0012V50FO - Technical Attributes
Attributes Table
Nominal Input Voltage: 120VAC to 277VAC
Max Output Power: 60W
Maximum Output Voltage: 12V
Minimum Output Current: 0.1A
Maximum Output Current: 5A
Input Power Factor: 0.99
Number of Output Channels: 1
Certifications: CSA,UL
Driver Class: Class 2
Mounting Method: Chassis Mount
Features & Applications

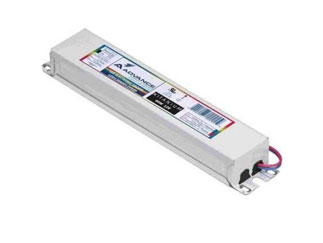

The LEDINTA0012V50FO is a Xitanium 60 W 5 A 12 V UL Class II Outdoor LED Driver Module.

It is Ideal for channel letter, architectural, contour, edge or orientation/step lighting applications, Xitanium drivers for 12 vdc and 24 vdc LED systems feature a compact, leaded design, are rated for 50,000+ hours of life and carry a full five-year warranty.

Product Specifications:

  • Output power (W) : 60
  • Output voltage : 12 V
  • Output current : 0.10 to 5 A
  • Tcase Max : 90°C
  • Input current at 120 V : 0.6 A
  • Max input power(W) : 70
  • Input voltage : 120 to 277 V
  • Input frequency : 50/60 Hz
  • Inrush current (Apk/µs) : 100/120
  • Max THD : 20 %
  • Min power factor : 0.99
  • Surge protection (KV) : 2.5
  • Weight (Lbs) : 1.4/635
  • Envir. Protection Rating : UL Dry & Damp

View the LEDINTA Series of LED Driver Modules

Pricing Section
Global Stock:
221
USA:
221
400
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$47.78
USD
Quantity
Web Price
1
$47.78
3
$47.19
10
$46.55
20
$46.19
40+
$45.50
