Manufacturer Part #
ISL2111ABZ-T

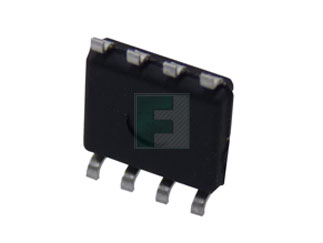

ISL2111 Series N Channel 100 V 3A / 4A Half-Bridge Driver - SOIC-8 T&R
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Renesas | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-8N Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Renesas ISL2111ABZ-T - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=ISL2111ABZ-T&field4=Renesas&field18=https://p1apac.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/isl2111abz-t-renesas-9125750
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=ISL2111ABZ-T&field4=Renesas&field18=https://p1apac.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/isl2111abz-t-renesas-9125750
Renesas ISL2111ABZ-T - Technical Attributes
Attributes Table
| Configuration: | Half Bridge |
| No of Outputs: | Dual |
| Peak Output Current: | 4A |
| Supply Voltage-Max: | 14V |
| Rated Power Dissipation: | 1.3W |
| Quiescent Current: | 0.3mA |
| Turn-off Delay Time: | 32ns |
| Turn-on Delay Time: | 39ns |
| Rise Time: | 9ns |
| Fall Time: | 7.5ns |
| Operating Temp Range: | -40°C to +125°C |
| Package Style: | SOIC-8N |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
18 Weeks
Quantity
Unit Price
2,500+
$3.00
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-8N
Mounting Method:
Surface Mount
