Manufacturer Part #
MTS2916A-HGC1

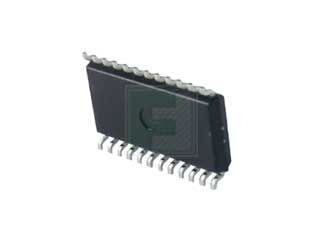

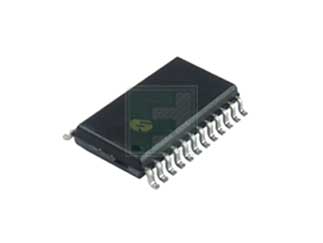

MTS2916A Series 5.5 Surface Mount Dual Full-Bridge Motor Driver - SOIC-24
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:32 per Tube Package Style:SOIC-24 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2507 | ||||||||||
Product Specification Section
Microchip MTS2916A-HGC1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MTS2916A-HGC1&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/mts2916a-hgc1-microchip-4012011
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MTS2916A-HGC1&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/mts2916a-hgc1-microchip-4012011
Microchip MTS2916A-HGC1 - Technical Attributes
Attributes Table
| Load Voltage: | 40V |
| No of Outputs: | Dual |
| Supply Voltage-Max: | 5.5V |
| Package Style: | SOIC-24 |
| Mounting Method: | Surface Mount |
Features & Applications
The MTS2916A-HGC1 is a dual full-bridge motor driver; available in SOIC-24 package.
This device capable of driving both windings of a bipolar stepper motor or bidirectionally control two DC motors. Each of the two independent H-bridge outputs is capable of sustaining 40V and delivering up to 750 mA of continuous current.
Features:
- 750 mA Continuous Output Current
- Load Voltage Supply: 10V to 40V
- Full Bipolar Stepper Motor Drive Capability
- Bidirectional DC Motor Capability
- Internal Fixed TOFF Time PWM Current Control
- Internal Protection Diodes
- Internal Thermal Shutdown
- Under Voltage Lockout
- LS-TTL Compatible Logic Inputs with Pull-Up Resistors
- Low RON Output Resistance
- Low Quiescent Current
- Operating Temperature Range: -20°C to +85°C
- Pin Compatible with Allegro 2916
Applications:
- Stepper Motor Actuators
- DC Motor Actuators
- Automotive HVAC Ventilation
- Automotive Power Seats
