Manufacturer Part #
TLE7181EMXUMA1

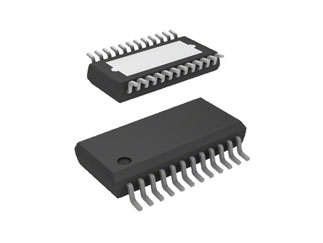

TLE7181EM Series 34 V H-Bridge and Dual Half Bridge Driver IC - PG-SSOP-24EP
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SSOP-24 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon TLE7181EMXUMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=TLE7181EMXUMA1&field4=Infineon&field18=https://p1apac.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/tle7181emxuma1-infineon-1127580
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=TLE7181EMXUMA1&field4=Infineon&field18=https://p1apac.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/tle7181emxuma1-infineon-1127580
Infineon TLE7181EMXUMA1 - Technical Attributes
Attributes Table
| Motor Type: | Brushed DC |
| No of Outputs: | Quad |
| Supply Current: | 45mA |
| Rated Power Dissipation: | 2W |
| Supply Voltage-Max: | 45V |
| Supply Voltage: | 5.5V to 45V |
| Fall Time: | 200ns |
| Rise Time: | 250ns |
| Operating Temp Range: | -40°C to +150°C |
| Package Style: | SSOP-24 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
2,500+
$1.85
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SSOP-24
Mounting Method:
Surface Mount
