Manufacturer Part #
IPS161H

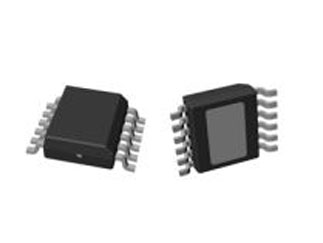

IPS Series 60 V 120 mOhm Surface Mount Power Switch - POWERSSO-12
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Package Style:POWERSSO-12 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2535 | ||||||||||
Product Specification Section
STMicroelectronics IPS161H - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=IPS161H&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/p/semiconductors--analog--power-switches/ips161h-stmicroelectronics-5088237
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=IPS161H&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/p/semiconductors--analog--power-switches/ips161h-stmicroelectronics-5088237
STMicroelectronics IPS161H - Technical Attributes
Attributes Table
| Clamping Voltage-Max: | 71.5V |
| Configuration: | High Side |
| Input Voltage: | 8V to 60V |
| No of Elements: | Single |
| On-state Resistance-Max: | 120mΩ |
| Type: | Power Switch |
| Operating Temp Range: | -40°C to +150°C |
| Turn-off Delay Time: | 20µs |
| Turn-on Delay Time: | 30µs |
| Current - Limit: | 1.7A |
| Rise Time: | 10µs |
| Fall Time: | 10µs |
| Package Style: | POWERSSO-12 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
1,200
Germany:
1,200
Factory Lead Time:
16 Weeks
Quantity
Unit Price
100
$1.79
300
$1.77
1,000
$1.75
2,000
$1.73
4,000+
$1.71
Product Variant Information section
Available Packaging
Package Qty:
100 per
Package Style:
POWERSSO-12
Mounting Method:
Surface Mount
