Microchip | MIC47100-08YMME

The MIC47100-08YMME is a high speed, Low V IN LDO capable of delivering up to 1 A and designed to take advantage of point of load applications that use multiple supply rails to generate a low voltage, high current power supply. The MIC47100 is stable with only a 1 µF ceramic output capacitor and is available in a thermally enhanced 2 mm × 2 mm MLF ® package thus making it an optimal solution for board-constrained applications.

The MIC47100 has an NMOS output stage offering very low output impedance. The NMOS output stage offers a unique ability to respond very quickly to sudden load changes such as that required by a microprocessor, DSP or FPGA. The MIC47100 consumes little quiescent current and therefore can be used for driving the core voltages of mobile processors, post regulating a core DC/DC converter in any portable device.

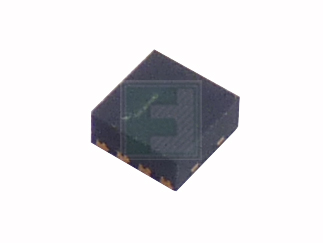

The MIC47100 is available in fixed and adjustable output voltages in the exposed pad MSOP-8 package and the tiny 2 mm × 2 mm MLF ® package with an operating junction temperature range of -40 °C to +125 °C.

Key Features:

• Operating voltage range:
• Input Supply: 1.0 V to 3.6 V
• Bias Supply: 2.3 V to 5.5 V
• 0.8 V to 2.0 V output voltage range
• High bandwidth – very fast transient response
• PSRR >50 dB at 100 kHz
• Stable with a 1 µF ceramic output capacitor
• Low dropout voltage of 80 mV at 1 A
• High output voltage accuracy:
• +/- 1.5% initial accuracy
• +/- 2% over temperature
• Logic level enable input
• UVLO on both supply voltages for easy turn-on
• ePad MSOP-8 – small form factor power package
• Thermally enhanced 2 mm × 2 mm MLF ® – smallest solution

Applications:

• Simple high-efficiency step-down (buck) regulator
• Efficient preregulator for linear regulators
• On-card switching regulators
• Positive-to-negative converter (inverting buck-boost)
• Isolated flyback converter using minimum external components
• Negative boost converter
