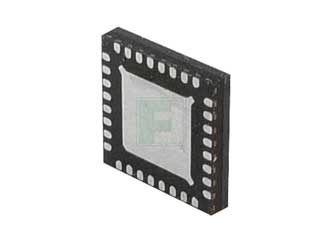

Microchip | MIC22950YML-TR

The MIC22950YML TR is a high efficiency 10 A integrated switch synchronous buck (step-down) regulator, available in a 32 pin 5mm x 5mm MLF package.

This device is programmable up to 400 kHz to 2 MHz, allowing the customer to optimize designing either for efficiency or for the smallest footprint and achieves over 95% efficiency while still switching at 2 MHz over a broad load range.

Features:

• 2.6 V to 5.5 V supply voltage
• Fully integrated MOSFET switches
• Adjustable output voltage option down to 0.7 V
• Output load current up to 10 A
• Full sequencing and tracking capability
• Power On Reset
• Efficiency > 95% across a broad load range
• Operating frequency programmable: 400 kHz to 2 MHz
• Ultra-fast transient response
• 100% maximum duty cycle
• Micropower shutdown
• Thermal shutdown and current-limit protection
• Available in a 32-pin 5 mm x 5 mm MLF® package
• -40°C to +125°C junction temperature range

Applications:

• High power density point-of-load conversion
• Base stations, Servers and Routers
• Blu-Ray Players,DVD recorders
• Computer Peripherals
• FPGAs, DSP and Low-Voltage ASIC power
