Manufacturer Part #
MP2322GQH-P

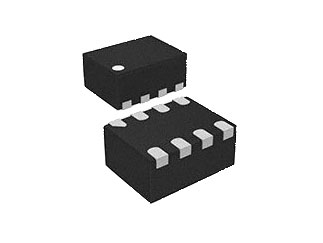

MP2322 Series 1 A 3-22 V 1.25 MHz Synchronous Step-Down Converter - QFN-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Monolithic Power Systems | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Reel Package Style:QFN-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Monolithic Power Systems MP2322GQH-P - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Monolithic Power Systems MP2322GQH-P - Technical Attributes
Attributes Table
| Topology: | Buck |
| Input Voltage: | 3V to 22V |
| Output Current-Max: | 1A |
| Output Voltage Range: | 12V to 600mV |
| Switching Frequency-Max: | 1.25MHz |
| Operating Temp Range: | -40°C to +125°C |
| No. of Outputs: | 1 |
| Quiescent Current: | 5µA |
| Storage Temperature Range: | -65°C to +150°C |
| Power Consumption: | 1.14W |
| Package Style: | QFN-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
28 Weeks
Quantity
Unit Price
500
$0.815
1,000
$0.805
1,500
$0.795
2,000
$0.79
2,500+
$0.775
Product Variant Information section
Available Packaging
Package Qty:
500 per Reel
Package Style:
QFN-8
Mounting Method:
Surface Mount
