Manufacturer Part #
TC115501EMTTR
TC115 Series 5 V 140 mA SMT PFM/PWM Step-Up DC/DC Converter - SOT89-5
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:SOT-89-5 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip TC115501EMTTR - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TC115501EMTTR&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/tc115501emttr-microchip-1042374
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TC115501EMTTR&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/tc115501emttr-microchip-1042374
Microchip TC115501EMTTR - Technical Attributes
| Topology: | Boost |
| Input Voltage: | 0.9V to 10V |
| Output Current-Max: | 140mA |
| Output Voltage Range: | 5V |
| Switching Frequency-Max: | 115kHz |

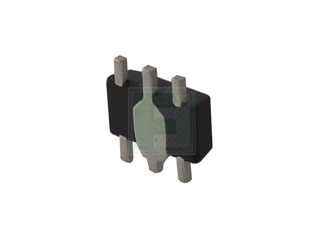

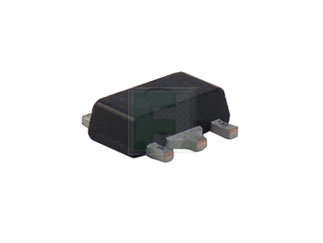

| Package Style: | SOT-89-5 |
| Mounting Method: | Surface Mount |
Features & Applications
TC115501EMTTR is a high-efficiency step-up DC/DC converter and operates with low input voltage or battery powered systems. The device has a start-up voltage of 0.9 V and a typical supply current of 80 µA.
Phase compensation and soft-start circuitry are included on chip. Unlike conventional PWM step-up converters, the TC115 automatically shifts to pulse frequency modulation (PFM) at low loads, resulting in reduced supply current and improved efficiency.
Features:
- High Efficiency at Low Output Load Currents via PFM Mode
- Assured Start-up at 0.9V
- 80 µA (Typ) Supply Current
- 85% Typical Efficiency at 100 mA
- 140 mA Typical Output Current @ VIN ? 2.0 V
- Low Power Shutdown Mode
- No External Switching Transistor Needed
- Space-Saving SOT-89 Package
Applications:
- Pagers
- Cellular Phones
- Palmtops
- 1-Cell to 3-Cell Battery Powered Systems
- Cameras, Video Recorders
- Local +3 V to +5 V Supplies
View the available list of DC/DC converter
Available Packaging
Package Qty:
1000 per Reel
Package Style:
SOT-89-5
Mounting Method:
Surface Mount
