Manufacturer Part #
MCP1525-I/TO

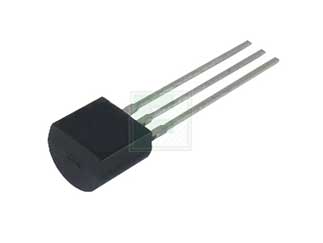

MCP1525 Series 2.5 V and 4.096 V ±2 mA Precision Voltage References - TO-92-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Package Style:TO-92 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Microchip MCP1525-I/TO - Product Specification
Shipping Information:
ECCN:
PCN Information:
Revision History:November 04, 2021: Issued initial notification.March 15, 2022: Issued final notification. Attached the Qualification Report. Provided estimated first ship date to be on April 20, 2022. Updated the package lay-out in Pre and Post change comparison (ppt file) for CRTK � Die sit either flat side or curve side depending on die or BD lay-out on some devices.Description of Change:Qualification of CEL-8240 GS as a new mold compound material for selected Supertex CL2xx, CL52xx, LND150, MCP15xx, MCP170x and MCP970xx device families available in 3L TO-92 package assembled at CRTK assembly site.Reason for Change:To improve productivity and on-time delivery performance by qualifying CEL-8240 GS as a new mold compound material at CRTK assembly site.
Description of Change:Qualification of CEL-8240 GS as a new mold compound material for selected Supertex CL2xx, CL52xx, LND150, MCP15xx, MCP170x and MCP970xx device families available in 3L TO-92 package assembled at CRTK assembly site.Reason for Change:To improve productivity and on-time delivery performance by qualifying CEL-8240 GS as a new mold compound material at CRTK assembly site.
Part Status:
Microchip MCP1525-I/TO - Technical Attributes
| Type: | Series |
| Reference Voltage: | 2.5V |
| Tolerance (%): | ±1% |
| Rated Current: | 20mA |
| Rated Voltage: | 2.5V to 4V |
| Quiescent Current: | 100µA |
| Package Style: | TO-92 |
| Mounting Method: | Through Hole |
Features & Applications
MCP1525 series of low power, high precision voltage reference. It provides a precise output voltage of 2.5 V which is then compared to other voltages in the system.This voltage reference is normally used in the 3 V to 5 V systems, where there may be wide variations in supply voltage and a need to minimize power dissipation.
This devices use a combination of an advanced CMOS circuit design and EEPROM trimming to provide and an initial tolerance of 1% (max) and temperature stability of 50 ppm/C (max). This device is offered in SOT23-3 & TO-92 packages and is ideal for communications equipment, data acquisition systems, instrumentation and process control, high precision power supplies and battery powered equipment.
Features:
- Precision Voltage Reference
- Output Voltage: 2.5 V.
- Initial Accuracy: ±1% (max.)
- Temperature Drift: ±50 ppm/°C (max.)
- Output Current Drive: ±2 mA
- Maximum Input Current: 100 µA @ +25°C (max.)
- Packages: TO-92 and SOT-23-3
- Industrial Temperature Range: -40°C to +85°C
Applications:
- Battery powered systems
- Handheld Instruments
- Instrumentation and process control
- Test Equipment
- Data Acquisition systems
- Communications Equipment
- Medical Equipment
- Precision power supplies
- 8-bit, 10-bit, 12-bit A/D Converters(ADCs)
- D/A Converters(DACs)
View the complete family of MCP1525 Voltage References
Available Packaging
Package Qty:
1000 per Bag
Package Style:
TO-92
Mounting Method:
Through Hole
