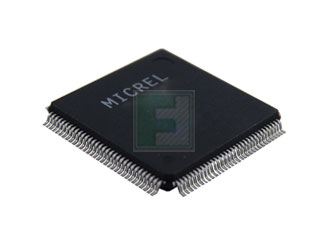

Microchip | KSZ8842-16MVLI

The KSZ8842-16MVLI is a part of KSZ8842-series of 2-port switches includes PCI and non-PCI CPU interfaces, and are available in 8/16-bit and 32-bit bus designs The KSZ8842M is the industry’s first fully managed, 2-port switch with a non-PCI CPU interface.

It is based on a proven, 4th generation, integrated Layer-2 switch, compliant with IEEE 802.3u standards.The KSZ8842M can be configured as a switch or as a low-latency (≤ 310 nanoseconds) repeater in latency-critical, embedded or industrial Ethernet applications.

Features:

• Switch Management:
• Non-blocking switch fabric assures fast packet delivery by utilizing a 1K entry forwarding table
• Fully compliant with IEEE 802.3u standards
• Full-duplex IEEE 802.3x flow control (Pause) with force mode option
• Half-duplex back pressure flow control
• Advanced Switch Management:
• IEEE 802.1Q VLAN support for up to 16 groups
• VLAN ID tag/untag options, on a per port basis
• IEEE 802.1p/Q tag insertion or removal on a per port basis
• Programmable rate limiting at the ingress and egress ports
• Monitoring:
• Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port
• MIB counters for fully compliant statistics gathering – 34 MIB counters per port
• Loopback modes for remote failure diagnostics
• Comprehensive Register Access:
• Control registers configurable on-the-fly
• QoS/CoS Packets Prioritization Support:
• Per port, 802.1p and DiffServ-based
• Remapping of 802.1p priority field on a per port basis
• Power Modes, Packaging, and Power Supplies:
• Full-chip hardware power-down allows low power dissipation
• Per port-based, software power-save on PHY
• Single power supply: 3.3 V
• Commercial Temperature Range: 0°C to +70°C
• Industrial Temperature Range: –40°C to +85°C

Applications:

• Video Distribution Systems
• High-end Cable, Satellite, and IP set-top boxes
• Video over IP
• Voice over IP (VoIP) and Analog Telephone Adapters (ATA)
• Industrial Control in Latency Critical Applications
• Motion Control
• Industrial Control Sensor Devices
• Security and Surveillance Cameras
