Vishay | VS-243NQ100PBF

Manufacturer Part #

VS-243NQ100PBF

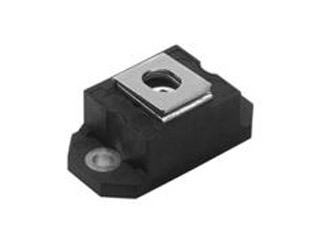

243NQ100PbF Series 100 V 240 A Schottky Rectifier HALF-PAK (D-67)

ECAD Model:
Mfr. Name: Vishay
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Vishay VS-243NQ100PBF - Technical Attributes
Attributes Table
Average Rectified Current-Max: 240A
Reverse Voltage-Max [Vrrm]: 100V
Reverse Current-Max: 6mA
Forward Voltage: 0.95V
Configuration: Single
Diode Capacitance-Max: 5500pF
Thermal Resistance: 0.19°C/W
Operating Temp Range: -55°C to +175°C
Storage Temperature Range: -55°C to +175°C
Package Style:  D-67
Mounting Method: Chassis Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
20
Multiple Of:
20
Total
$405.60
USD
Quantity
Unit Price
20
$20.28
40
$20.15
60
$20.07
80
$20.02
100+
$19.85
