Manufacturer Part #

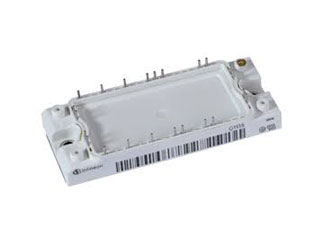

FP40R12KE3BPSA1
IGBT Module Trench Field Stop Three Phase Inverter 1200 V 55 A 210 W Chassis M
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:15 per Tray Package Style:Module Mounting Method:Chassis Mount | ||||||||||
| Date Code: | 2251 | ||||||||||
Product Specification Section
Infineon FP40R12KE3BPSA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=FP40R12KE3BPSA1&field4=Infineon&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/fp40r12ke3bpsa1-infineon-7154848
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=FP40R12KE3BPSA1&field4=Infineon&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/fp40r12ke3bpsa1-infineon-7154848
Infineon FP40R12KE3BPSA1 - Technical Attributes
Attributes Table
| CE Voltage-Max: | 1200V |
| Collector Current @ 25C: | 55A |
| Power Dissipation-Tot: | 210W |
| Gate - Emitter Voltage: | 20V |
| Pulsed Collector Current: | 80A |
| Collector - Emitter Saturation Voltage: | 1.8V |
| Turn-on Delay Time: | 0.09µs |
| Turn-off Delay Time: | 0.42µs |
| Qg Gate Charge: | 330nC |
| Leakage Current: | 100nA |
| Input Capacitance: | 2.5nF |
| Operating Temp Range: | -40°C to +125°C |
| No of Terminals: | 24 |
| Package Style: | Module |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
15
Germany:
15
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
15
$59.86
30
$59.46
45
$59.23
60
$59.06
75+
$58.53
Product Variant Information section
Available Packaging
Package Qty:
15 per Tray
Package Style:
Module
Mounting Method:
Chassis Mount
