Manufacturer Part #

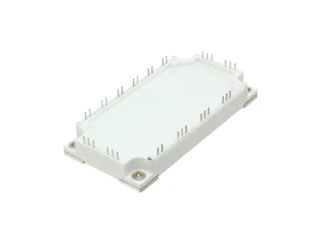

FS150R12KE3BOSA1
IGBT Module, Six Pack Full Bridge, 200 A, 1.7 V, 700 W, 125 C, Module
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10 per Bulk Package Style:Module Mounting Method:Chassis Mount | ||||||||||
| Date Code: | 2248 | ||||||||||
Product Specification Section
Infineon FS150R12KE3BOSA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=FS150R12KE3BOSA1&field4=Infineon&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/fs150r12ke3bosa1-infineon-7154849
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=FS150R12KE3BOSA1&field4=Infineon&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/fs150r12ke3bosa1-infineon-7154849
Infineon FS150R12KE3BOSA1 - Technical Attributes
Attributes Table
| CE Voltage-Max: | 1200V |
| Collector Current @ 25C: | 200A |
| Power Dissipation-Tot: | 700W |
| Gate - Emitter Voltage: | 20V |
| Pulsed Collector Current: | 300A |
| Collector - Emitter Saturation Voltage: | 1.7V |
| Turn-on Delay Time: | 0.26µs |
| Turn-off Delay Time: | 0.42µs |
| Qg Gate Charge: | 1400nC |
| Leakage Current: | 400nA |
| Input Capacitance: | 10.5nF |
| Operating Temp Range: | -40°C to +125°C |
| No of Terminals: | 35 |
| Package Style: | Module |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
10
Germany:
10
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
10
$108.29
20
$107.36
30
$106.82
40+
$106.14
Product Variant Information section
Available Packaging
Package Qty:
10 per Bulk
Package Style:
Module
Mounting Method:
Chassis Mount
