Infineon | IKW50N65F5FKSA1

Manufacturer Part #

IKW50N65F5FKSA1

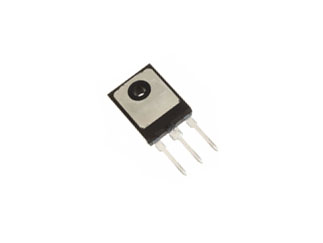

IKW50N65F5 Series 650 V 80 A 305 W Through Hole DuoPack IGBT - PG-TO-247-3

ECAD Model:
Mfr. Name: Infineon
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Infineon IKW50N65F5FKSA1 - Technical Attributes
Attributes Table
CE Voltage-Max: 650V
Collector Current @ 25C: 80A
Power Dissipation-Tot: 305W
Gate - Emitter Voltage: 20V
Pulsed Collector Current: 150A
Collector - Emitter Saturation Voltage: 1.6V
Turn-on Delay Time: 21ns
Turn-off Delay Time: 175ns
Qg Gate Charge: 120nC
Reverse Recovery Time-Max: 52ns
Leakage Current: 100nA
Input Capacitance: 3000pF
Operating Temp Range: -40°C to +175°C
No of Terminals: 3
Package Style:  TO-247-3
Mounting Method: Through Hole
Pricing Section
Global Stock:
0
USA:
0
On Order:Order inventroy details
240
Factory Stock:Factory Stock:
0
Factory Lead Time:
36 Weeks
Minimum Order:
240
Multiple Of:
30
Total
$619.20
USD
Quantity
Unit Price
30
$2.62
120
$2.58
450
$2.54
900
$2.52
2,250+
$2.47
