Infineon | IKW75N65ES5XKSA1

Manufacturer Part #

IKW75N65ES5XKSA1

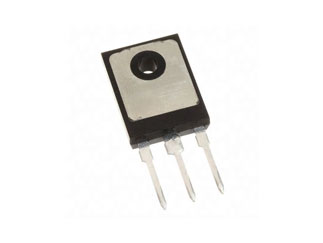

IKW75N65ES5: 650 V 80 A TRENCHSTOPTM 5 Soft Switching IGBT - PG-TO247-3

ECAD Model:
Mfr. Name: Infineon
Standard Pkg:
Product Variant Information section
Date Code: 2509
Product Specification Section
Infineon IKW75N65ES5XKSA1 - Technical Attributes
Attributes Table
CE Voltage-Max: 750V
Collector Current @ 25C: 80A
Power Dissipation-Tot: 395W
Gate - Emitter Voltage: ±30V
Pulsed Collector Current: 300A
Turn-on Delay Time: 40ns
Turn-off Delay Time: 144ns
Qg Gate Charge: 164nC
Reverse Recovery Time-Max: 85ns
Operating Temp Range: -40°C to +175°C
Package Style:  TO-247-3
Mounting Method: Through Hole
Pricing Section
Global Stock:
570
USA:
570
On Order:Order inventroy details
1,440
Factory Stock:Factory Stock:
0
Factory Lead Time:
19 Weeks
Minimum Order:
30
Multiple Of:
30
Total
$92.40
USD
Quantity
Unit Price
30
$3.08
120
$3.03
450
$2.99
750
$2.97
1,500+
$2.91
