onsemi | BUZ11-NR4941

Manufacturer Part #

BUZ11-NR4941

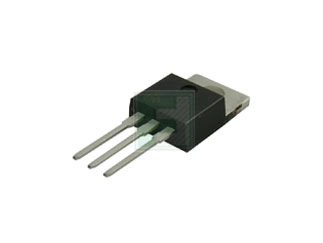

BUZ11: Series 50 V 30 mOhm 75 W Through Hole N-channel Power Mosfet - TO-220AB

ECAD Model:
Mfr. Name: onsemi
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
onsemi BUZ11-NR4941 - Technical Attributes
Attributes Table
Product Status: Active
Fet Type: N-Ch
No of Channels: 1
Drain-to-Source Voltage [Vdss]: 50V
Drain-Source On Resistance-Max: 40mΩ
Rated Power Dissipation: 75W
Gate-Source Voltage-Max [Vgss]: 20V
Drain Current: 30A
Turn-on Delay Time: 30ns
Turn-off Delay Time: 180ns
Rise Time: 70ns
Fall Time: 130ns
Operating Temp Range: -55°C to +150°C
Gate Source Threshold: 3V
Technology: TrenchMOS
Input Capacitance: 1500pF
Package Style:  TO-220-3 (TO-220AB)
Mounting Method: Through Hole
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
1600
Multiple Of:
50
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$720.00
USD
Quantity
Unit Price
50
$0.48
200
$0.465
750
$0.455
1,250
$0.45
2,500+
$0.435
