Manufacturer Part #
IPTG014N10NM5ATMA1

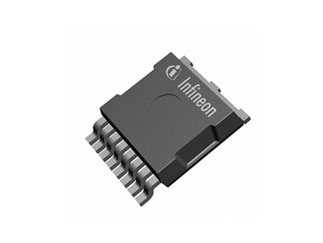

100V 366A 1.4 mOhm N-ch TOLG (HSOG-8)
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1800 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2242 | ||||||||||
Product Specification Section
Infineon IPTG014N10NM5ATMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Location Change
07/17/2024 Details and Download
Subject Capacity extension by introduction of 300mm wafer diameter for specific OptiMOS™5 products in PG-HDSOP-16 (TOLT), PGHSOG-8 (TOLG) and PG-HSOF-8 (TOLL) package to Infineon Technologies Austria AG, Villach, AustriaReason Next phase of Front-End capacity expansion by introduction of 300mm wafer diameter to support continuous increasing customer demand
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=IPTG014N10NM5ATMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/iptg014n10nm5atma1-infineon-9183582
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=IPTG014N10NM5ATMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/iptg014n10nm5atma1-infineon-9183582
Infineon IPTG014N10NM5ATMA1 - Technical Attributes
Attributes Table
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 100V |
| Drain-Source On Resistance-Max: | 1.4mΩ |
| Rated Power Dissipation: | 3.8W |
| Qg Gate Charge: | 169nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 37A |
| Turn-on Delay Time: | 36ns |
| Turn-off Delay Time: | 85ns |
| Rise Time: | 30ns |
| Fall Time: | 30ns |
| Operating Temp Range: | -55°C to +175°C |
| Gate Source Threshold: | 3V |
| Technology: | OptiMOS |
| Input Capacitance: | 12000pF |
| Series: | OptiMOS 5 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
5,400
USA:
5,400
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
1,800+
$2.37
Product Variant Information section
Available Packaging
Package Qty:
1800 per Reel
Mounting Method:
Surface Mount
