Manufacturer Part #
STL36DN6F7

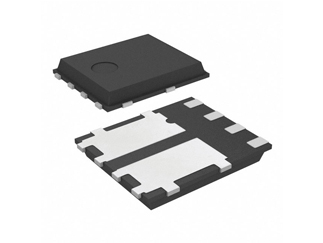

Dual N-channel 60 V, 0.023 Ohm typ., 36 A STripFET F7 Power MOSFET in a PowerFLA
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics STL36DN6F7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=STL36DN6F7&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/stl36dn6f7-stmicroelectronics-8192235
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=STL36DN6F7&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/stl36dn6f7-stmicroelectronics-8192235
STMicroelectronics STL36DN6F7 - Technical Attributes
Attributes Table
| No of Channels: | 2 |
| Drain-to-Source Voltage [Vdss]: | 60V |
| Drain-Source On Resistance-Max: | 27Ω |
| Rated Power Dissipation: | 58W |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 33A |
| Turn-on Delay Time: | 7.85ns |
| Turn-off Delay Time: | 12.1ns |
| Rise Time: | 3.25ns |
| Fall Time: | 3.95ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 4V |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
26 Weeks
Quantity
Unit Price
3,000
$0.355
6,000
$0.35
9,000+
$0.345
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
