STMicroelectronics | STP40NF10

Manufacturer Part #

STP40NF10

N-Channel 100 V 33 mΩ Flange Mount STripFET™ II Power MosFet - TO-220

ECAD Model:
Mfr. Name: STMicroelectronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
STMicroelectronics STP40NF10 - Technical Attributes
Attributes Table
Fet Type: N-Ch
Drain-to-Source Voltage [Vdss]: 100V
Drain-Source On Resistance-Max: 0.033Ω
Rated Power Dissipation: 150|W
Qg Gate Charge: 46.5nC
Package Style:  TO-220-3 (TO-220AB)
Features & Applications

The STP40NF10 is a Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate charge.

It is therefore suitable as primary switch in advanced highefficiency isolated DC-DC converters for Telecom and Computer application. It is also intended for any application with low gate charge drive requirements.

Features:

  • Exceptional dv/dt capability
  • 100% avalanche tested
  • Application oriented characterization

Applications:

  • Switching application
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
-1
Factory Lead Time:
13 Weeks
Minimum Order:
2000
Multiple Of:
50
Total
$1,060.00
USD
Quantity
Unit Price
50
$0.565
250
$0.545
1,250
$0.53
2,500
$0.525
7,500+
$0.505
Product Variant Information section
Related Products

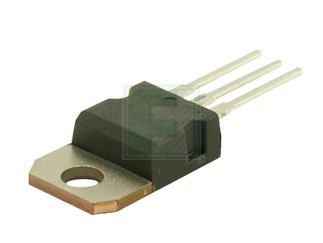

STP42N65M5
