Manufacturer Part #

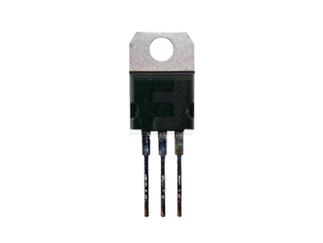

STP42N65M5
N-Channel 650 V 79 mΩ 100 nC Flange Mount MDmesh™ V Power MosFet - TO-220
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Flange Mount | ||||||||||
| Date Code: | |||||||||||
STMicroelectronics STP42N65M5 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=STP42N65M5&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/stp42n65m5-stmicroelectronics-6265979
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=STP42N65M5&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/stp42n65m5-stmicroelectronics-6265979
STMicroelectronics STP42N65M5 - Technical Attributes
| Fet Type: | N-Ch |
| Drain-to-Source Voltage [Vdss]: | 650V |
| Drain-Source On Resistance-Max: | 79mΩ |
| Rated Power Dissipation: | 190|W |
| Qg Gate Charge: | 100nC |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Flange Mount |
Features & Applications
The STP42N65M5 is a MDmesh™ V is a revolutionary Power MOSFET technology based on an innovative proprietary vertical process, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.
The resulting product has extremely low on-resistance, which is unmatched among silicon-based Power MOSFETs, making it especially suitable for applications which require superior power density and outstanding efficiencies.
Features:
- TO-220 worldwide best RDS(on)
- Higher VDSS rating
- High dv/dt capability
- Excellent switching performance
- Easy to drive
- 100% avalanche tested
Applications:
- Switching applications
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Flange Mount
