Manufacturer Part #
STP5NK100Z

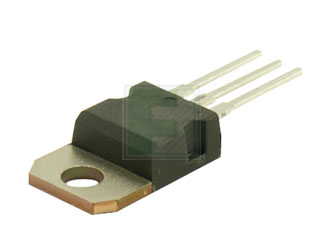

N-Channel 1 kV 3.7 Ohm SuperMESH3 Power MosFet - TO-220
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Flange Mount | ||||||||||
| Date Code: | 2352 | ||||||||||
Product Specification Section
STMicroelectronics STP5NK100Z - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
STMicroelectronics STP5NK100Z - Technical Attributes
Attributes Table
| Fet Type: | N-Ch |
| Drain-to-Source Voltage [Vdss]: | 1000V |
| Drain-Source On Resistance-Max: | 3.7Ω |
| Rated Power Dissipation: | 125|W |
| Qg Gate Charge: | 59nC |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Flange Mount |
Features & Applications
Pricing Section
Global Stock:
7,000
USA:
7,000
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
50
$1.57
150
$1.55
500
$1.53
1,000
$1.51
2,000+
$1.49
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Flange Mount
