Manufacturer Part #

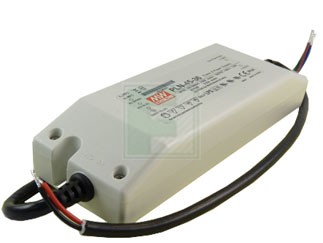

PLN-45-36
100 - 240Vac, 45W, 1250mA, 27-36V, IP64 LED Driver
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | MEAN WELL | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Box |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
MEAN WELL PLN-45-36 - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
N/A
HTS Code:
N/A
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Obsolete
Obsolete
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PLN-45-36&field4=MEAN WELL&field18=https://p1na.futureelectronics.com/p/semiconductors--lighting-solutions--led-driver-modules-rev/pln-45-36-mean-well-9000328
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PLN-45-36&field4=MEAN WELL&field18=https://p1na.futureelectronics.com/p/semiconductors--lighting-solutions--led-driver-modules-rev/pln-45-36-mean-well-9000328
-
MEAN WELL PLN-45-36 - Technical Attributes
Attributes Table
| Nominal Input Voltage: | 100VAC to 240VAC |
| Max Output Power: | 45W |
| Minimum Output Voltage: | 27V |
| Maximum Output Voltage: | 36V |
| Minimum Output Current: | 1250mA |
| Maximum Output Current: | 1250mA |
| Input Power Factor: | 0.9 |
| Efficiency: | 87.5% |
| Number of Output Channels: | 1 |
| Certifications: | CE,cUL,LPS,PSE,UL |
| Driver Class: | Class I,Class 2,SELV |
| IP Rating: | IP64 - Outdoor Lighting Rating |
| Dimming Control: | Excludes Dimming |
| Is Dim to Off: | False |
Features & Applications
The PLN-45-36 is a 45 W single output LED Power Supply, suitable for LED lighting and moving sign applications.
Features:
- Universal AC input / Full range (up to 295 VAC)
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit with adjustable OCP level
- Fully isolated plastic case with IP64 level
- Built-in active PFC function
- IP64 design for indoor or outdoor installations
- Class 2 power unit and pass LPS
- 100 % full load burn-in test
- High reliability
- Compliance to worldwide safety regulations for lighting
View the Available PLN series of LED Driver Modules
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
1
$59.58
2
$58.91
4
$58.25
5
$58.04
15+
$56.74
Product Variant Information section
Available Packaging
Package Qty:
1 per Box
