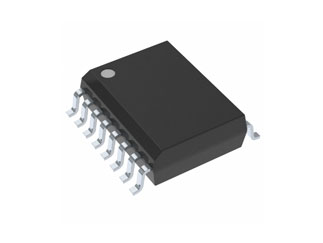

Manufacturer Part #
S25FL256LAGMFN000
FLASH - NOR Memory IC 256Mb (32M x 8) SPI - Quad I/O, QPI 133MHz 16-SOIC
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:240 per Tray Package Style:SOIC-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Infineon S25FL256LAGMFN000 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Detailed change informationSubject: Data sheet update for S25FL128Lx and S25FL256Lx SOIC productsDescription: Data sheet –Correction of data sheetOld - Rev. MNew - Rev. NReason Correction of package diagram from BGA to SOIC on page 174(only in the English data sheet 002-00124).Intended start of deliveryvalid with immediate effect (documentation update)
Description:Change of wire bond from Cu to CuPdAu for industrial graded SOIC 16L packaged productsReason:Product harmonization of bond wire usage. CuPdAu wire enables superior electrical, thermal and reliability performance, making it an excellent interconnect solution for packaging to ensure business continuity and supply by streamlining its production.LTB - 2025-05-12LTS - 2025-08-12
Detailed change information:Change of lot naming convention in Infineon Technologies (Thailand) Limited, Nonthaburi, Thailand for subject memory productsReason:The lot numbering identification changing from 10 digit to 11 digit for whole Bangkok site according to the global Infineon standardlot numbering system manufacturing strategy.
Detailed change information:Change of lot naming convention in Infineon Technologies (Thailand) Limited, Nonthaburi, Thailand for subject memory productsReason:The lot numbering identification changing from 10 digit to 11 digit for whole Bangkok site according to the global Infineon standardlot numbering system manufacturing strategy.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=S25FL256LAGMFN000&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--memory--flash--norflash--serial/s25fl256lagmfn000-infineon-8121704
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=S25FL256LAGMFN000&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--memory--flash--norflash--serial/s25fl256lagmfn000-infineon-8121704
Infineon S25FL256LAGMFN000 - Technical Attributes
| Program Memory Type: | Flash |
| Clock Frequency-Max: | 133MHz |
| InterfaceType / Connectivity: | Quad SPI/SPI - Quad I/O |
| Memory Density: | 256Mb |
| Memory Organization: | 32M x 8 |
| Supply Voltage-Nom: | 2.7V to 3.6V |
| Temperature Grade: | Extended |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -65°C to +150°C |
| Input Capacitance: | 8F |
| Moisture Sensitivity Level: | 3 |
| Package Style: | SOIC-16 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
240 per Tray
Package Style:
SOIC-16
Mounting Method:
Surface Mount
