Manufacturer Part #
MC9S08PL4CSC

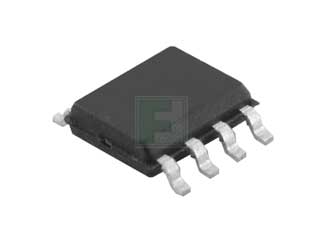

MC9S08PL Series 4 kB Flash 512 B RAM 20 MHz 8-Bit Microcontroller - SOIC-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NXP | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:98 per Bag Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
NXP MC9S08PL4CSC - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
3A991.a.2
This item may be subject to export licensing controls.
PCN Information:
N/A
File
Date
Part Status:
Active
Active
NXP MC9S08PL4CSC - Technical Attributes
Attributes Table
| Family Name: | MC9S08PL |
| Core Processor: | S08 |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 4kB |
| RAM Size: | 512B |
| Speed: | 20MHz |
| No of I/O Lines: | 6 |
| InterfaceType / Connectivity: | LIN/SCI/UART |
| Peripherals: | Watchdog |
| Supply Voltage: | 2.7V to 5.5V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 4-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
98
$0.485
294
$0.475
392
$0.47
980
$0.46
1,470+
$0.45
Product Variant Information section
Available Packaging
Package Qty:
98 per Bag
Package Style:
SOIC-8
Mounting Method:
Surface Mount
