Manufacturer Part #

552-3511F

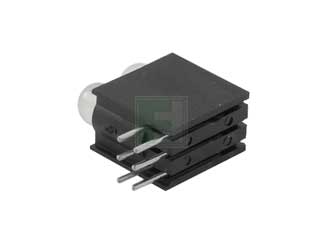

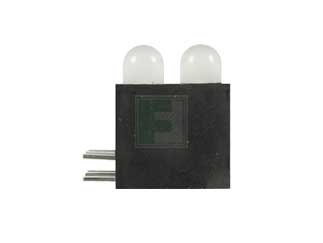

552 Series Red Green Ø5mm 65° 5/8mcd 25mA 2.1/2.3 V LED Circuit Board Indicator

ECAD Model:
Mfr. Name: Dialight
Standard Pkg:
Product Variant Information section
Date Code: 2106
Product Specification Section
Technical Attributes
Attributes Table
No of LEDs: 4
Color: Red / Green
Lens Type: Diffused
Forward Voltage: 2.1V/2.3V
Forward (Drive) Current: 25mA
Intensity: 5mcd/8mcd
Viewing Angle: 65°
Wavelength: 635nm/565nm
Rated Power: 135*135mW
Operating Temp Range: -20°C to +85°C
Storage Temperature Range: -55°C to +100°C
Dimension: H  12.52mm x L  16.13mm x W  7.52mm
Mounting Method: Through Hole
Features & Applications

The 552-3511F is a 5 mm diameter BI-level housing right angle (green/red) BI-color LED circuit board indicator with tinted diffused lens.

Features:

  • Multiple CBIs form horizontal LED arrays on 6.35mm (0.250”) center-lines.
  • High Contrast, UL 94 V-0 rated, black housing
  • Oxygen index: 32%
  • Polymer content: PBT, 0.710 g
  • Housing stand-offs facilitate PCB cleaning
  • Solderability per MIL-STD-202F, method 208F
  • LEDs are safe for direct viewing per IEC 825-1, EN-60825-1

Applications:

  • Industrial
  • Automotive
  • Home appliances






Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$2.56
USD
Quantity
Web Price
1
$2.56
30
$2.27
100
$2.17
200
$2.12
500+
$2.05
