Manufacturer Part #
SSL-LX3059IGW

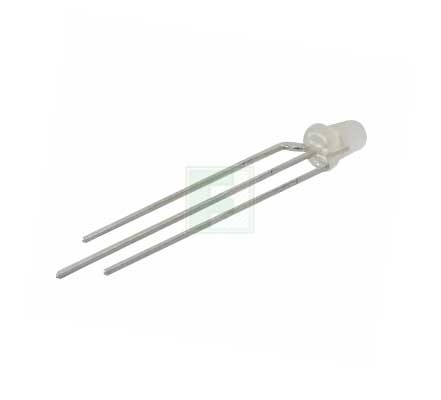

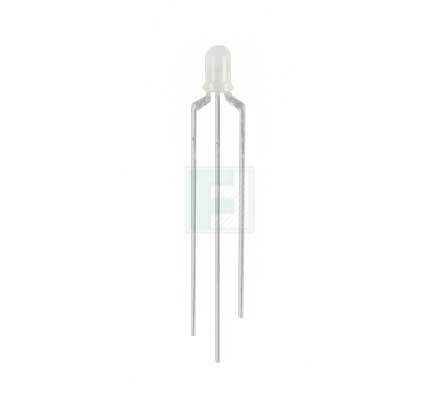

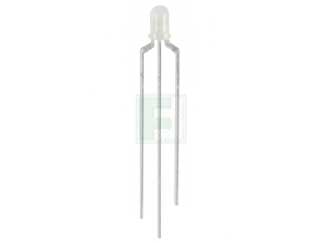

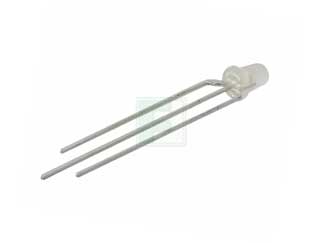

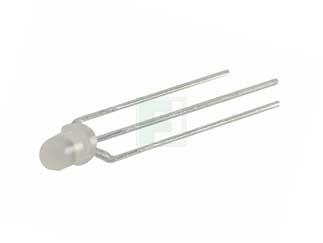

Red/Green 3 x 5 mm 60° Diffused 30 mcd 2/2.2 V Tri-Leaded Through Hole LED
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Lumex | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | 2520 | ||||||||||
Product Specification Section
Lumex SSL-LX3059IGW - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SSL-LX3059IGW&field4=Lumex&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ssl-lx3059igw-lumex-2417798
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SSL-LX3059IGW&field4=Lumex&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ssl-lx3059igw-lumex-2417798
Lumex SSL-LX3059IGW - Technical Attributes
Attributes Table
| No of LEDs: | 2 |
| Color: | Red / Green |
| Lens Type: | Diffused |
| Forward Voltage: | 2V/2.2V |
| Forward (Drive) Current: | 20mA |
| Intensity: | 30mcd |
| Viewing Angle: | 60° |
| Wavelength: | 635nm/565nm |
| Rated Power: | 105mW |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -40°C to +85°C |
| Dimension: | H 5mm x D 4mm |
| Mounting Method: | Through Hole |
Features & Applications
The SSL-LX3059IGW is a 2/2.2 V 3x5 mm Red/Green Milky White 30 mcd Round Tri-Leaded Through Hole QuasarBrite LEDs.
Features:
- State-of-the-Art LED Technology
- Choice of LED Colors and Lens FInishes
- Lead Frame / Lens Casting Reliability
- Easy-to-Solder Leads, Tin Finish
- Available Bulk or on Tape and Reel
- Custom Solutions available
Parameters:
- Peak Forward Current : 150 mA
- Steady Current (R/G) : 30/25 mA
- Power Dissipation : 105 mW
- Derate from 25°c (R/G) : -1.6 mW/°C
- Operating temperature : -40°C to + 85°C
- Peak wave length (R/G) : 635/565 nm
- Forward voltage : 2.2/2.0 V to 2.5/2.6 V
- Reverse Voltage : 5.0 V
- Emitted color : Red/Green
- Epoxy Lens Finish : Milky White
Applications:
- Industrial Controls
- Medical Eqiupment
- Communications Equipment
- Test and Measurement Equipment
- Security Electronics
- Life Safety Equipment
- Large Panel Indicators
Pricing Section
Global Stock:
2,386
USA:
2,386
Factory Lead Time:
N/A
Quantity
Unit Price
1
$0.192
150
$0.187
300
$0.184
1,000
$0.18
2,000+
$0.174
Product Variant Information section
Available Packaging
Package Qty:
500 per Bag
Mounting Method:
Through Hole
