Microchip — MCP19215 Dual Boost/SEPIC Evaluation Board

Microchip

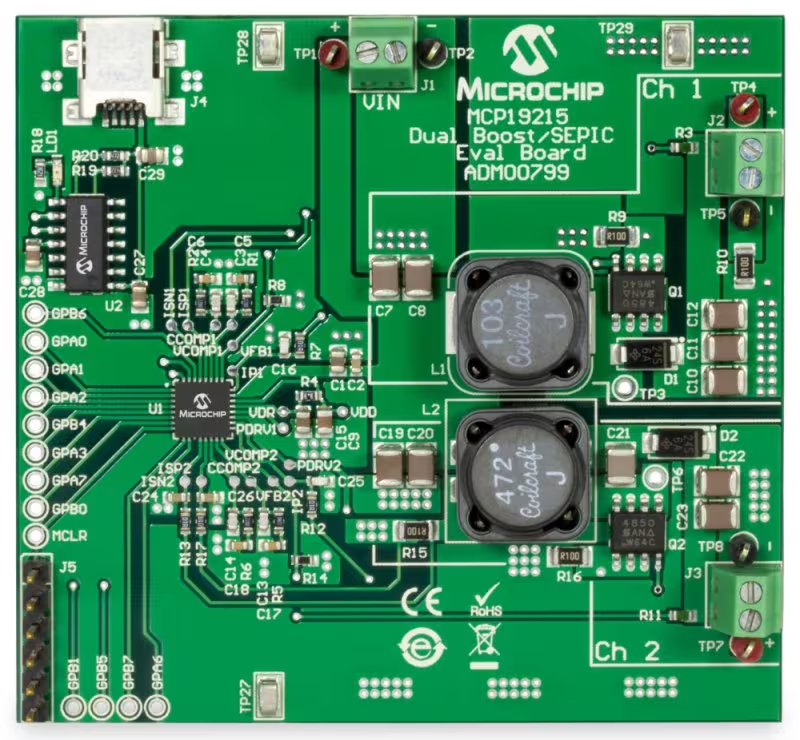

Microchip MCP19215 Dual Boost/SEPIC Evaluation Board

Flexible, programmable platform for Boost and SEPIC power-conversion design and testing

The MCP19215 Dual Channel Controller Evaluation Board provides a complete demonstration of the MCP19215 device’s performance in Boost and SEPIC topologies across a wide input voltage and load range. Featuring an integrated PIC® microcontroller, the board enables designers to program nearly every operational and control parameter for maximum flexibility.

This kit includes the MCP19215 Dual Boost/SEPIC Evaluation Board (ADM00799), a USB A to Mini-USB Type B cable, and an important information sheet—everything you need to start evaluating high-efficiency power conversion quickly and efficiently.

Features

  • Wide 8 V to 15 V input voltage range
  • Default 20 V output per channel, software adjustable
    • Channel 1: input + 1 V to 24 V
    • Channel 2: 9 V to 24 V
  • Default 0.2 A output current, adjustable from 0 A to 1 A
  • 300 kHz switching frequency for efficient operation
  • I²C interface for status reporting of errors, input/output voltages, and current
  • Programmable undervoltage (UVLO) and overvoltage (OVLO) lockout thresholds

Applications

  • Power supply evaluation and design
  • Boost and SEPIC DC-DC converter development
  • Prototyping for industrial and consumer electronics
  • Educational and research labs exploring programmable power solutions
