onsemi | DFB2560

Manufacturer Part #

DFB2560

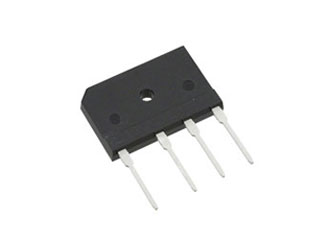

DFB2560 Series 25 A 600 V 10 uA Glass Passivated Bridge Rectifier - SIP-4

ECAD Model:
Mfr. Name: onsemi
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
onsemi DFB2560 - Technical Attributes
Attributes Table
Average Rectified Current-Max: 25A
Reverse Voltage-Max [Vrrm]: 600V
Peak Current-Max: 350A
Reverse Current-Max: 10µA
Forward Voltage: 1.1V
Package Style:  SIP-4
Mounting Method: Through Hole
Features & Applications

The DFB2560 is a Glass passivated bridge rectifier, with 25 A of forward current and reverse voltage(Vr) of 600 V. Available in SIP-4 package .

Features:

  • UL Certificate # E326243
  • Glass Passivated Junction
  • Ideal for Printed Circuit Board
  • Reliable Low Cost Construction
  • Plastic Material has Underwriters Laboratory Flammability Classification 94V-0
  • Surge Overload Rating to 350 Amperes Peak
  • High Case Dielectric Strength of 2500 VRMS
  • Isolated Voltage from Case to Lead Over 2500 Volts

Applications:

  • Routers & LAN Switches
  • Home Audio System Components
  • Graphic Card
  • LCD Monitor
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
1200
Multiple Of:
1200
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,788.00
USD
Quantity
Unit Price
1,200+
$1.49
