Manufacturer Part #
BD140G

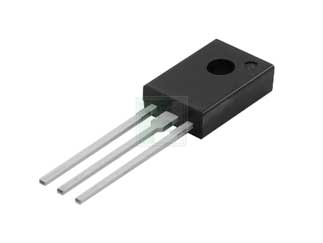

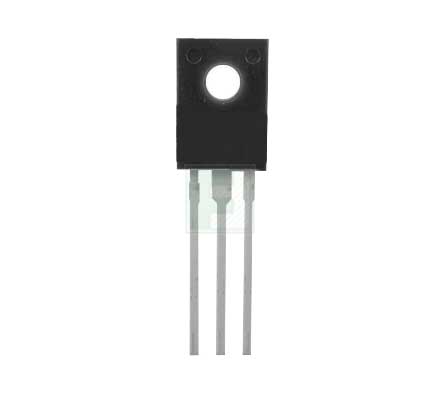

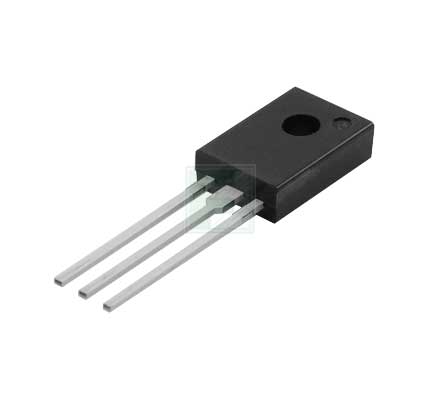

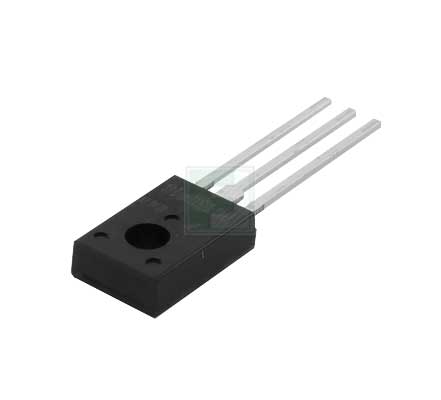

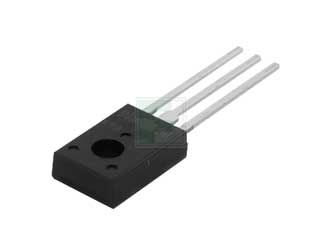

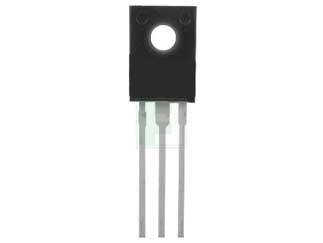

BD Series 80 V 1.5 A Plastic Medium Power Silicon PNP Transistor - TO-225AA
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Box Package Style:TO-225 (TO-126, SOT-32) Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi BD140G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD140G&field4=onsemi&field18=https://p1na.futureelectronics.com/de/p/semiconductors--discretes--transistors--bipolar-transistors/bd140g-onsemi-6765234
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD140G&field4=onsemi&field18=https://p1na.futureelectronics.com/de/p/semiconductors--discretes--transistors--bipolar-transistors/bd140g-onsemi-6765234
onsemi BD140G - Technical Attributes
Attributes Table
| Polarity: | PNP |
| Type: | Power Transistor |
| CE Voltage-Max: | 80V |
| Collector Current Max: | 1.5A |
| Power Dissipation-Tot: | 1.25W |
| DC Current Gain-Min: | 25 |
| Package Style: | TO-225 (TO-126, SOT-32) |
| Mounting Method: | Through Hole |
Features & Applications
This series of plastic, medium-power PNP transistors are designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits.
Features:
- DC Current Gain - hFE = 40 (Min) @ IC = 0.15 Adc
- BD 136, 138, 140 are complementary with BD 135, 137, 139
- Pb-Free Package is Available
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
17 Weeks
Quantity
Unit Price
500
$0.39
1,000
$0.385
2,000
$0.38
2,500+
$0.375
Product Variant Information section
Available Packaging
Package Qty:
500 per Box
Package Style:
TO-225 (TO-126, SOT-32)
Mounting Method:
Through Hole
