Manufacturer Part #
RS3-2415D

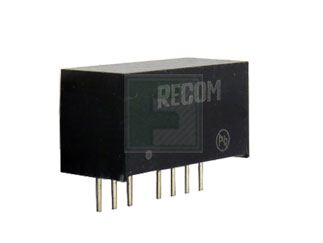

RS3 Series 3 W Dual Output -15 / 15 V DC/DC Converter - SIP-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | RECOM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:22 per Tube Package Style:SIP-8 Mounting Method:Through Hole | ||||||||||
| Date Code: | 2436 | ||||||||||
Product Specification Section
RECOM RS3-2415D - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
RECOM RS3-2415D - Technical Attributes
Attributes Table
| Type: | Encapsulated |
| Isolation: | Isolated |
| No of Outputs: | Dual |
| Output Power: | 3W |
| Output Voltage: | -15V/15V |
| Input Voltage: | 18V to 36V |
| Operating Temp Range: | -40°C to +71°C |
| Efficiency: | 83% |
| Power Dissipation: | 3W |
| Quiescent Current: | 20mA |
| Load Capacitance: | 1000µF |
| Load Regulation (%): | 0.5% |
| Output Current: | ±100mA |
| Switching Frequency-Max: | 200kHz |
| Ripple & Noise: | 50mV |
| Dimension: | L 21.8mm x W 9.2mm x H 11.1mm |
| Package Style: | SIP-8 |
| Mounting Method: | Through Hole |
Features & Applications
Pricing Section
Global Stock:
22
USA:
22
On Order:
0
Factory Lead Time:
6 Weeks
Quantity
Unit Price
22
$13.18
44+
$13.02
Product Variant Information section
Available Packaging
Package Qty:
22 per Tube
Package Style:
SIP-8
Mounting Method:
Through Hole
