Manufacturer Part #
NCV70514MW007AR2G
Motor / Motion / Ignition Controllers & Drivers C514B-COLD BOOST
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Package Style:QFN-32 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2422 | ||||||||||
Product Specification Section
onsemi NCV70514MW007AR2G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=NCV70514MW007AR2G&field4=onsemi&field18=https://p1emea.futureelectronics.com/es/p/semiconductors--analog--drivers--motor-drivers/ncv70514mw007ar2g-onsemi-3127514
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=NCV70514MW007AR2G&field4=onsemi&field18=https://p1emea.futureelectronics.com/es/p/semiconductors--analog--drivers--motor-drivers/ncv70514mw007ar2g-onsemi-3127514
onsemi NCV70514MW007AR2G - Technical Attributes
Attributes Table
| Motor Type: | Micro-Stepping |
| Load Voltage: | 0V to 5.5V |
| No of Outputs: | Triple |
| Output Current-Max: | 800mA |
| Clock Frequency-Max: | 8.8MHz |
| Supply Voltage-Max: | 29V |
| Supply Voltage: | 6V to 29V |
| Fall Time: | 180ns |
| Rise Time: | 190ns |
| Interface: | SPI |
| Operating Temp Range: | -40°C to +145°C |

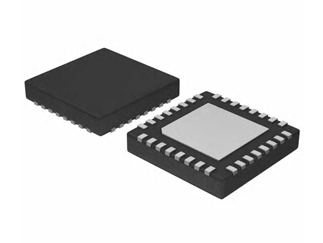

| Package Style: | QFN-32 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
15,000
Germany:
15,000
On Order:
0
Factory Lead Time:
22 Weeks
Quantity
Unit Price
5,000+
$1.48
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
Package Style:
QFN-32
Mounting Method:
Surface Mount
