Manufacturer Part #
1-794953-4

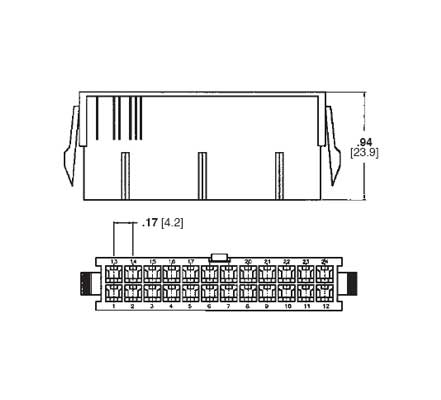

VAL-U-LOK Series 14 Position Locking Ramp Male Pin Crimp Plug Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Bag Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-794953-4 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-794953-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-rectangular-plastic-industrial/1-794953-4-te-connectivity-7901184
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-794953-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-rectangular-plastic-industrial/1-794953-4-te-connectivity-7901184
TE Connectivity 1-794953-4 - Technical Attributes
Attributes Table
| No of Positions: | 14 |
| Contact Termination: | Male/Pin Crimp |
| Style/Orientation: | Plug Housing |
| Material: | Nylon |
| Mating Type: | Locking Ramp |
| Mounting Method: | Panel Mount |
Features & Applications
The 1-794953-4 is a Low cost, wire-to-wire, wire-to-board and wire-to-panel connectors with 4.2 mm centerline.
Features:
- Easy mate and unmate with positive latch design
- Single-row, 3-5 positions: receptacles, panel mount or free-hanging plugs
- Double-row, 2-24 positions (even only):
receptacles, panel mount or free-hanging plugs,
and vertical or right-angle pin headers - Available in UL 94V-2 or UL 94V-0 flammability rated nylon
- roducts are lead free to help promote a cleaner environment
- Intermateable and interchangeable with Molex Mini-Fit, Jr. and intermateable AMP-DUAC
connectors
Applications:
- Computer motherboards/power supplies
- Harness assemblies used in the Vending,Gaming and Appliance industries
- Car alarm systems
- Heating systems
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
3,000
$0.155
6,000
$0.153
9,000
$0.151
12,000+
$0.15
Product Variant Information section
Available Packaging
Package Qty:
3000 per Bag
Mounting Method:
Panel Mount
