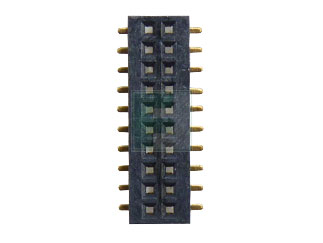

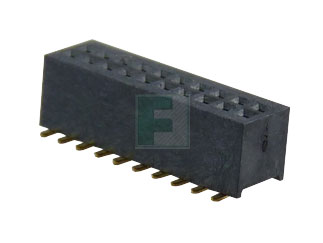

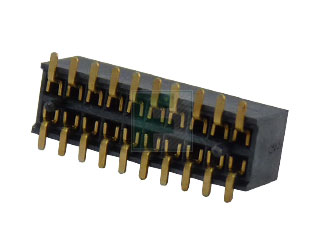

Sullins | SFM315-LPGE-D10-SP-BK

Manufacturer Part #

SFM315-LPGE-D10-SP-BK

20 Position Total Dual Row 1 mm Pitch Surface Mount Guide Post Female Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins SFM315-LPGE-D10-SP-BK - Technical Attributes
Attributes Table
Mounting Method: Surface Mount
Features & Applications

The SFM315-LPGE-D10-SP-BK is a .039" Gold Contact Dual Row 2x10 Position (20 Pin) Surfacemount With Post Female Header.

Features:

  • Female Header
  • Contact Surface: .000010” Gold; Termination: Gold Flash
  • 1mm Dual Readout
  • 20 total contacts
  • Surface Mount With Guide Posts
  • Black

Specifications:

  • Female Header
  • Insulator Material: L.C.P, UL 94V-0, Black Color
  • Contact Material: Phosphor Bronze
  • Current Rating: 1 AMP
  • Insulator Resistance: 1000 Mega OHMS Min
  • Contact Resistance: 20 Milli OHMS Max
  • Dielectric Withstanding: AC 300 V
  • Operating Temperature: -40° C to +125° C
  • Processing Temp: 260° C FOR 10 Secs Max
  • Mates with Male SMH Series

View the Complete Series of SFM Headers

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
100
Factory Lead Time:
8 Weeks
Minimum Order:
1000
Multiple Of:
1
Total
$2,080.00
USD
Quantity
Unit Price
10
$2.21
30
$2.18
75
$2.16
200
$2.13
400+
$2.08
Product Variant Information section
Related Products

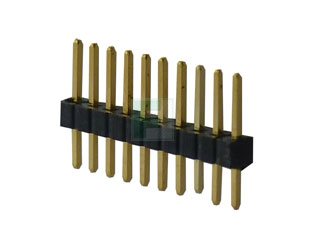

SMH100-LPSE-S10-ST-BK
