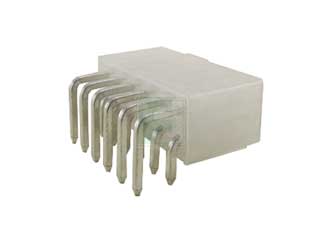

12 Position Dual Row 0.165 inch Right Angle Wire to Board Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Tray Mounting Method:PCB Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-1586041-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1586041-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/1-1586041-2-te-connectivity-7197932
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1586041-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/1-1586041-2-te-connectivity-7197932
TE Connectivity 1-1586041-2 - Technical Attributes
Attributes Table
| No of Positions: | 12 |
| Pitch: | 4.2 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 9A |
| Contact Plating: | Tin |
| Material: | Nylon |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Wire to Board |
| Mating Type: | Latch Lock |
| Color: | Natural |
| Mounting Method: | PCB Mount |
Features & Applications
The 1-1586041-2 is a 12 Position 2.54 mm Through-Hole Dual Row Right Wire-to-Board Right Angle Shrouded Header. Its Operating Temperature ranges from -40°C – +105°C.
Product Features:
- Product Type = Connector
- Connector Type = Header
- Termination Method to PC Board = Through Hole - Solder
- PCB Mounting Orientation = Right Angle
- Shrouded = Yes
- Profile Height (Y-Axis) (mm [in]) = 9.80 [0.386]
- Header Type = Shrouded
- Number of Positions = 12
- Number of Rows = 2
- Centerline (mm [in]) = 4.20 [0.165]
- Mating Retention = With
- Selectively Loaded = No
- Length (X-Axis) (mm [in]) = 26.40 [1.0394]
- Width (Z-Axis) (mm [in]) = 13.00 [0.518]
View the Complete Series of Right Angle Shrouded Headers
