Manufacturer Part #
5-104362-2

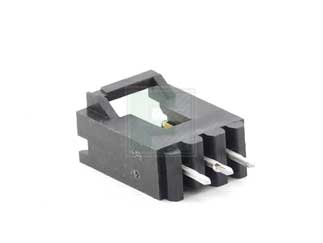

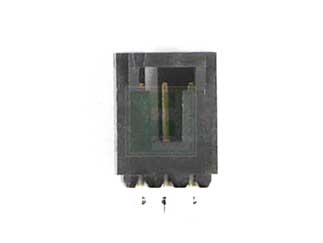

AMPMODU 3 Position Through-Hole Single Row Straight 2.54 mm Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:52 per Tube | ||||||||||
| Date Code: | 2527 | ||||||||||
TE Connectivity 5-104362-2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Product Description:MTE Header LatchKind of Change:MaterialGeneral Description of ChangesBefore: (1) Current localized Gold Plating: 0.76 Micrometers(30microinches)Au plating on contact area. (2) Current localized Gold Plating: 0.38 Micrometers(15microinches)Au plating on contact area. After: (1) New localized Gold Plating: 0.66 Micrometers(26microinches)PdNi+ 0.1 Micrometers(4microinches)Au flash on contact area. (2) New localized Gold Plating : 0.28 Micrometers(11microinches)PdNi+ 0.1 Micrometers(4microinches)Au flash on contact area.Reason for Changes:Product Improvement - Optimization of Plating and reduction of CO2 emissions for MTE Header (Au plating to PdNi+Au flash plating)First Ship Date of Changed Items (Changed Parts Only): 30-NOV-2026
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-104362-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/5-104362-2-te-connectivity-5421805
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-104362-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/5-104362-2-te-connectivity-5421805
TE Connectivity 5-104362-2 - Technical Attributes
| No of Positions: | 3 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | IDC |
| Operating Temp Range: | -65°C to +105°C |
| Current Rating: | 3A |
| Contact Plating: | Gold |
| Material: | Thermoplastic |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Header |
| Mating Type: | Locking Lance |
| Color: | Black |
| Insulation Resistance: | 5000MΩ |
Features & Applications
The 5-104362-2 is a AMPMODU 3 Position Through-Hole Single Row Straight .100 Inch Header .
Product Specification:
- Connector
- Header
- Plug Style
- AMPMODU Product Line
- Pin Contact type
- Centreline is 2.54 mm [0.100 in]
- Number of Positions are 3
- Number of Rows are 1
Available Packaging
Package Qty:
52 per Tube
