Référence fabricant
S3B-EH(LF)(SN)

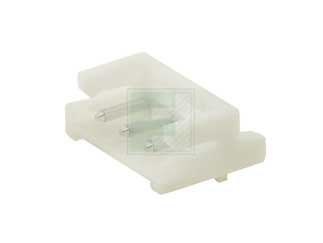

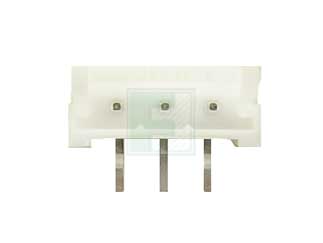

EH Series 3 Position 2.5 mm Pitch Through Hole Side Entry Shrouded Header
|
|
|||||||||||
|
|
|||||||||||
| Nom du fabricant: | JST | ||||||||||
| Emballage standard: |
Product Variant Information section
Emballages disponiblesQté d'emballage(s) :1000 par Box Méthode de montage :Through Hole |
||||||||||
| Code de date: | 2422 | ||||||||||
JST S3B-EH(LF)(SN) - Spécifications du produit
Informations de livraison:
Code HTS:
ECCN:
Informations PCN:
Statut du produit:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=S3B-EH(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/s3b-eh-lf-sn-jst-6997621
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=S3B-EH(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/s3b-eh-lf-sn-jst-6997621
JST S3B-EH(LF)(SN) - Caractéristiques techniques
| No of Positions: | 3 |
| Pitch: | 2.5 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Latch Lock |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Méthode de montage : | Through Hole |
Fonctionnalités et applications
The S3B-EH(LF)(SN) is a part of EH Series 3 Position 2.5 mm Side Entry Single Row Shrouded Header crimp style connector. It is compact, highly reliable and low in cost.
Features:
- Compact and slim
- Highly reliable contact
- Polarizing guides
- Easy and effective crimping
Product Specifications:
- Pitch: 2.5 mm
- Current rating: 3.0 A
- Voltage rating: 250 V
- Temperature range: -25°C to +85°C
- Insulation resistance: 1000 M?
View the complete EH Series of Headers
Emballages disponibles
Qté d'emballage(s) :
1000 par Box
Méthode de montage :
Through Hole
