Manufacturer Part #
LNK3206P

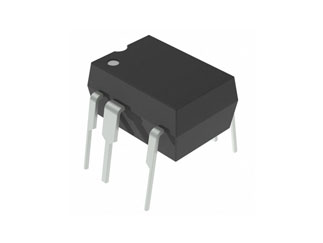

LinkSwitch-TN2 Series 725 V 66 kHz Through Hole Off-Line Switcher IC - PDIP-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Power Integrations | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Package Style:DIP-8 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Power Integrations LNK3206P - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=LNK3206P&field4=Power Integrations&field18=https://p1emea.futureelectronics.com/fr/p/semiconductors--analog--power-management-circuit--ac-dc-voltage-converter/lnk3206p-power-integrations-4184799
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=LNK3206P&field4=Power Integrations&field18=https://p1emea.futureelectronics.com/fr/p/semiconductors--analog--power-management-circuit--ac-dc-voltage-converter/lnk3206p-power-integrations-4184799
Power Integrations LNK3206P - Technical Attributes
Attributes Table
| Isolation: | Non Isolated |
| Internal Switch: | Yes |
| Breakdown Voltage-Max: | 725V |
| Topology: | Buck/Buck-Boost/Flyback |
| Supply Voltage: | 85V to 265V |
| Duty Cycle-Max: | 73% |
| Supply Current: | 165µA |
| Switching Frequency-Max: | 66kHz |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -65°C to +150°C |
| Package Style: | DIP-8 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
50
$0.685
250
$0.66
1,000
$0.645
2,500
$0.635
6,250+
$0.615
Product Variant Information section
Available Packaging
Package Qty:
50 per
Package Style:
DIP-8
Mounting Method:
Through Hole
