Manufacturer Part #

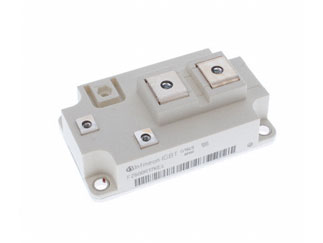

FZ600R17KE4HOSA1
IGBT Module Trench Field Stop Single 1700 V 1200 A 3350 W Chassis Mount Module
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10 per Tray Package Style:Module Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon FZ600R17KE4HOSA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
PCN Update
08/29/2024 Details and Download
**Update to FPCN 104586**Detailed change information:The shipping packaging for 62mm products will be changed. Please note that all new products are going to be also affected.Excluding products with pendulum packaging (Pendelverpackung) from affected product list.Reason:Harmonization of shipping packaging box to the same box size across the 62mm package.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FZ600R17KE4HOSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/it/p/semiconductors--discretes--transistors--igbts/fz600r17ke4hosa1-infineon-8154851
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FZ600R17KE4HOSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/it/p/semiconductors--discretes--transistors--igbts/fz600r17ke4hosa1-infineon-8154851
Infineon FZ600R17KE4HOSA1 - Technical Attributes
Attributes Table
| CE Voltage-Max: | 1700V |
| Collector Current @ 25C: | 840A |
| Power Dissipation-Tot: | 3350W |
| Gate - Emitter Voltage: | 20V |
| Pulsed Collector Current: | 1200A |
| Collector - Emitter Saturation Voltage: | 1.95V |
| Turn-on Delay Time: | 0.24µs |
| Turn-off Delay Time: | 0.7µs |
| Qg Gate Charge: | 6100nC |
| Leakage Current: | 100nA |
| Input Capacitance: | 49nF |
| Operating Temp Range: | -40°C to +150°C |
| No of Terminals: | 4 |
| Package Style: | Module |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
10
$142.42
20
$141.38
30
$140.77
40
$140.35
50+
$138.99
Product Variant Information section
Available Packaging
Package Qty:
10 per Tray
Package Style:
Module
Mounting Method:
Chassis Mount
