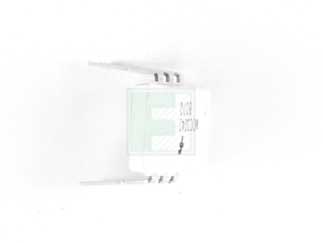

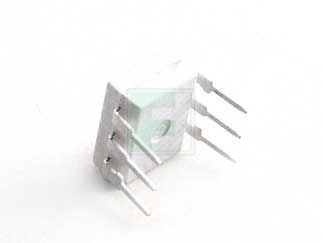

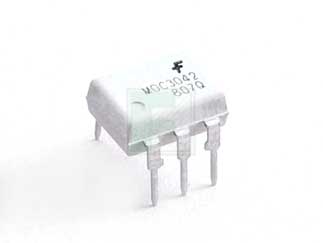

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

MOC3042M

DIP6 Through Hole 1 Channel 400 V 4170 Vrms Zero-Cross Triac Optoisolator

MOC3042M Datasheet MOC3042M Documentation Solution Guide
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	onsemi
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1000 per Tube Package Style: DIP-6 Mounting Method: Through Hole
Date Code:	2507

onsemi MOC3042M - Technical Attributes

No of Channels:	1
Isolation Voltage-RMS:	4170V
Off-State Voltage [Vdrm]:	400V
Operating Temp-Max:	85°C
Package Style:	DIP-6
Mounting Method:	Through Hole

Features & Applications

The MOC3042M device consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector that performs the function of a zero voltage crossing bilateral triac driver.

This device is designed for use with triac in the interface of logic systems to equipment powered from 115 VAC lines such as teletypewriters, CTRs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc. It has an Operating Temperature range of -40 °C to +85 ° C.

Features:

Simplifies logic control of 115 VAC power
Zero voltage crossing
dv/dt of 2000 V/µs typical, 1000 V/µs guaranteed
VDE recognized (File #94766)
ordering option V (e.g. MOC3043VM)

Applications:

Solenoid/Valve controls
Lighting controls
Static power switches
AC motor drives
Temperature controls
E.M. contactors
AC motor starters
Solid state relays

DIP6 Through Hole 1 Channel 400 V 4170 Vrms Zero-Cross Triac Optoisolator

Available Packaging

Package Qty:

Package Style:

Mounting Method:

onsemi MOC3042M - Product Specification
