Manufacturer Part #

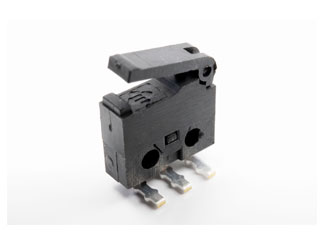

TS0101F020V2
Basic / Snap Action Switches
| | |||||||||||
| | |||||||||||
| Mfr. Name: | E-Switch | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bulk Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
E-Switch TS0101F020V2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
E-Switch TS0101F020V2 - Technical Attributes
Attributes Table
| Circuitry: | SPDT |
| Actuator Style: | Lever |
| Operating Force: | 20gf |
| Contact Current-Max: | 0.3A |
| Termination Style: | PC Pin |
| Contact Resistance: | 50mΩ |
| Insulation Resistance: | 100MΩ |
| Dielectric Withstanding Voltage: | 250V |
| Switch Operation: | On-Mom |
| Operating Temp Range: | -25°C to +85°C |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1,000+
$0.54
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bulk
Mounting Method:
Through Hole
