Manufacturer Part #
X0202MA 2BL2

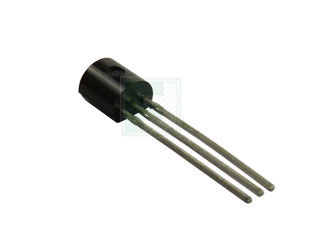

X02 Series 600 Vdrm 1.25 A Sensitive Gate Silicon Controlled Rectifier - TO-92
Product Specification Section
STMicroelectronics X0202MA 2BL2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
STMicroelectronics X0202MA 2BL2 - Technical Attributes
Attributes Table
Type: | SCR |
On-State Voltage [Vtm]: | 1.45V |
On State Current [It]-Typ: | 0.8A |
Off-State Voltage [Vdrm]: | 600V |
Off-State Current [Idrm]: | 5µA |
Gate Trigger Current [Igt]-Max: | 200µA |
On-state RMS Current [Irms]-Max: | 1.25A |
Hold Current [Ih]: | 5mA |
Leakage Current: | 6mA |
Configuration: | Single |
Peak Current-Max: | 25A |
Gate Trigger Voltage: | 800mV |
Operating Temp Range: | -40°C to +125°C |
Storage Temperature Range: | -40°C to +150°C |
Package Style: | TO-92 |
Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
2,000
$0.124
4,000
$0.122
8,000
$0.121
10,000
$0.12
30,000+
$0.118
Product Variant Information section
Available Packaging
Package Qty:
2000 per Ammo Pack
Package Style:
TO-92
Mounting Method:
Through Hole
