Manufacturer Part #
NCV4275CDS50R4G

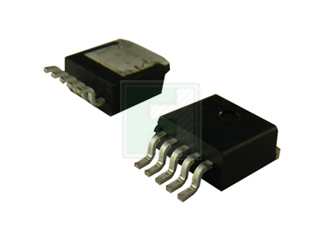

NCV4275C Series 42 V 450 mA SMT Integrated Low Dropout Regulator - D2PAK-5
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:800 per Reel Package Style:TO-263-5 (D2PAK5) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2543 | ||||||||||
Product Specification Section
onsemi NCV4275CDS50R4G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NCV4275CDS50R4G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/1090523
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NCV4275CDS50R4G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/1090523
onsemi NCV4275CDS50R4G - Technical Attributes
Attributes Table
| Input Voltage-Min: | 5.5V |
| Input Voltage-Max: | 42V |
| Output Voltage Fixed: | 5V |
| Dropout Voltage-Max: | 0.5V |
| Output Current-Max: | 450mA |
| Tolerance (%): | ±2% |
| Operating Temp Range: | -40°C to +150°C |
| Regulator Topology: | Fixed |
| Quiescent Current: | 135µA |
| No. of Outputs: | Single |
| Load Regulation: | 15mV |
| Current - Limit: | 650mA |
| Line Regulation: | 5mV |
| Package Style: | TO-263-5 (D2PAK5) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
800
USA:
800
Factory Lead Time:
11 Weeks
Quantity
Unit Price
800
$0.96
1,600
$0.945
2,400
$0.935
3,200
$0.93
4,000+
$0.915
Product Variant Information section
Available Packaging
Package Qty:
800 per Reel
Package Style:
TO-263-5 (D2PAK5)
Mounting Method:
Surface Mount
