Manufacturer Part #

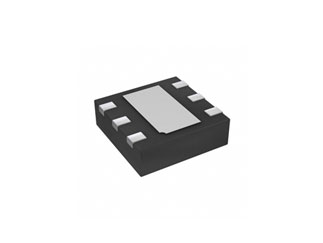

AP2141DFMG-7
Power Switch ICs - Power Distribution 0.5A SINGLE CH USB 2.0 Switch 90mOhm
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:UFDFN-6 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2443 | ||||||||||
Product Specification Section
Diodes Incorporated AP2141DFMG-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Diodes Incorporated AP2141DFMG-7 - Technical Attributes
Attributes Table
| Configuration: | High Side |
| Input Voltage: | 2.7V to 5.5V |
| No of Elements: | Single |
| On-state Resistance-Max: | 90mΩ |
| Type: | Power Switch |
| Operating Temp Range: | -40°C to +85°C |
| Turn-off Delay Time: | 50µs |
| Turn-on Delay Time: | 50µs |
| Current - Limit: | 800mA |
| Input Type: | Non-Inverting |
| Package Style: | UFDFN-6 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
12,000
USA:
12,000
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
3,000
$0.144
6,000
$0.142
9,000
$0.141
15,000+
$0.138
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
UFDFN-6
Mounting Method:
Surface Mount
