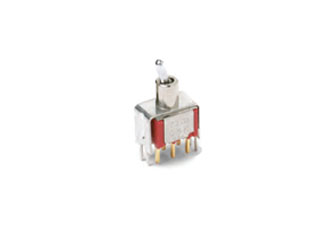

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

7203SYZQE

7000 Series 5 A Mini DPDT On-Off-On Solder Lug Rocker Switch

7203SYZQE Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	C&K
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 100 per Bulk Mounting Method: Panel Mount
Date Code:

C&K 7203SYZQE - Technical Attributes

Switch Operation:	On-Off-On
Circuitry:	DPDT
Rated Voltage (VAC):	120VAC
Voltage Rating:	28V
Current Rating:	5A
Insulation Resistance:	1GΩ
Contact Material:	Silver
Contact Plating:	Silver
Actuator Type:	Toggle
Termination Style:	Solder Lug
Dielectric Withstanding Voltage:	1000V
Bushing Style:	Threaded
Operating Temperature:	-30°C to +85°C
Dimension:	L 12.7mm x W 11.43mm x H 28.45mm
Mounting Method:	Panel Mount

Expand List

Collapse List

Features & Applications

C&K Components has established a position of leadership in the Switch Industry through providing one of the broadest lines of quality switches backed up by a superior level of customer service.

The 7000 Series of Miniature Toggle Switches is one of C&K’s most popular and versatile toggles. Nearly every attribute for this switch has multiple options allowing you to customize it to suit your application needs. Typical applications for the 7000 Series include:

Telecommunications
Instrumentation
Medical Equipment
Military

The 7203SYZQE offers a Double Pole, Double Throw (DPDT) switch operation providing an On-Off-On function. This epoxy sealed miniature toggle switch has a 0.42 inch high bright chrome actuator and 0.35 inch high nickel threaded keyway bushing. Termination is solder lug with silver contact material.
