Manufacturer Part #
5555980-1

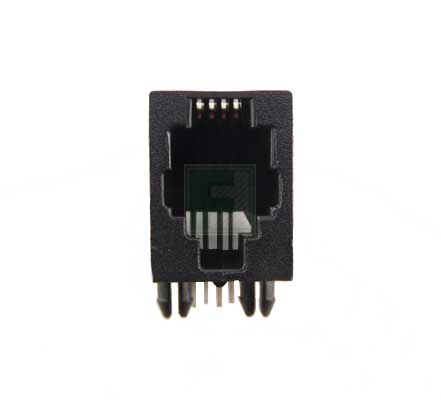

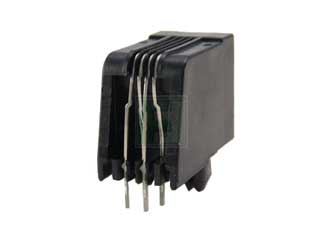

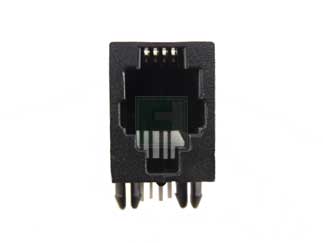

4 Position Single Port Right Angle Through Hole RJ22 Modular Jack
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:180 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | 2516 | ||||||||||
Product Specification Section
TE Connectivity 5555980-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5555980-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/1952290
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5555980-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/1952290
TE Connectivity 5555980-1 - Technical Attributes
Attributes Table
| Style: | Standard Jack |
| No of Positions: | 4 |
| Mounting Method: | Through Hole |
Features & Applications
The 5555980-1 is a PCB Mounted Modular Jack that meets 1000 volt dielectric requirement and is designed for direct mounting on pc boards and for ease of soldering and board cleaning.
Product Features:
- Product Type = Connector
- Jack Type = RJ22
- PCB Mounting Orientation = Right Angle
- PCB Mount Style = Through Hole
- Termination Method to PC Board = Solder
- Grounding Options = Without
- Panel Stops = Without
- Keyed = No
- Latch Style = Standard
- Panel Mount Retention = With
- Flanged = No
- Shielded = No
- Solder Tail Contact Plating = Tin over Nickel
- Port Configuration = Single
- Height (mm [in]) = 16.20 [0.638]
- Inverted Jack Face = No
- PCB Tail Length (mm [in]) = 3.80 [0.150]
- Preloaded = Yes
- Contact Plating, Mating Area, Material = Gold (50)
- Contact Base Material = Phosphor Bronze
- Housing Material = PBT - GF
Pricing Section
Global Stock:
2,785
USA:
2,785
Factory Lead Time:
12 Weeks
Quantity
Unit Price
180
$0.91
360
$0.895
540
$0.885
900
$0.875
1,800+
$0.855
Product Variant Information section
Available Packaging
Package Qty:
180 per Tray
Mounting Method:
Through Hole
