Manufacturer Part #
ANT161575TT-3000A1

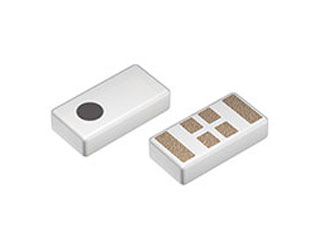

ANT161575TT Series Tri-Band Chip Antenna 1.575/2.4/5.5GHz - SMD
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TDK | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TDK ANT161575TT-3000A1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
7A994
This item cannot ship to China, Russia or Venezuela.
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ANT161575TT-3000A1&field4=TDK&field18=https://p1na.futureelectronics.com/p/2186794
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ANT161575TT-3000A1&field4=TDK&field18=https://p1na.futureelectronics.com/p/2186794
TDK ANT161575TT-3000A1 - Technical Attributes
Attributes Table
| Antenna Type: | Chip |
| VSWR: | 3.26 |
| Polarization: | Linear |
| No of Bands: | 3 |
| Application Type: | Wireless |
| Output Impedance: | 50Ω |
| Termination Style: | Solder |
| Operating Frequency: | 1574MHz to 5850MHz |
| Operating Temp Range: | -40°C to +85°C |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
4,000
$0.23
16,000+
$0.225
Product Variant Information section
Available Packaging
Package Qty:
4000 per Reel
Mounting Method:
Surface Mount
