Manufacturer Part #

568-0724-444F

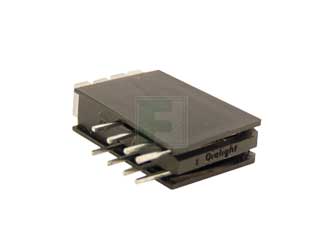

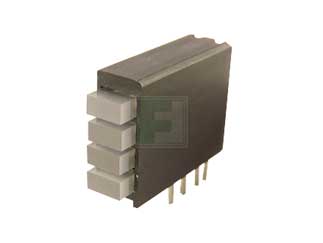

568 Series Quad Level Yellow Green 140° LED Circuit Board Indicator

ECAD Model:
Mfr. Name: Dialight
Standard Pkg:
Product Variant Information section
Date Code: 2403
Product Specification Section
Dialight 568-0724-444F - Technical Attributes
Attributes Table
No of LEDs: 8
Color: Yellow / Green
Forward Voltage: 2.1V/2.1V
Forward (Drive) Current: 20mA
Intensity: 2.5mcd/3.7mcd
Viewing Angle: 140°
Wavelength: 585nm/565nm
Rated Power: 60mW/100mW
Operating Temp Range: -55°C to +100°C
Storage Temperature Range: -55°C to +100°C
Dimension: H  12.7mm x L  18.44mm x W  5.08mm
Mounting Method: Through Hole
Features & Applications

The 568-0724-444F is a standard  quad yellow/green color right angle circuit board indicator with rectangular untinted diffused lens.

Features:

  • Multiple CBIs form horizontal LED arrays on 1.91mm (0.075”) center-lines
  • High Contrast, UL 94 V-0 rated, black housing
  • Oxygen index: 32%
  • Polymer content: PBT, 0.949 g
  • Housing stand-offs facilitate PCB cleaning
  • Solderability per MIL-STD-202F, method 208F
  • LEDs are safe for direct viewing per IEC 825-1,EN-60825-1

Applications:

  • Process controls
  • Automation
  • Medical Equipment
  • Handheld devices






Read More...
Pricing Section
Global Stock:
4
USA:
4
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$2.11
USD
Quantity
Unit Price
1
$2.11
20
$2.06
40
$2.04
125
$2.00
250+
$1.96
